• Operates as a baton drawn system.
• Supports pleated drapery styles with one-way or center draw capability.
• The durable metal pole is intended for all fabric types.
• 1 1/2” square pole. Poles can be custom cut to order. Custom items are non-returnable.
• Square rings glide smoothly across the square pole.
• For a ring-free look, choose traverse glides which operate within the rod channel.
• A ceiling bracket is available for ceiling mount applications.
• A double bracket accommodates a drapery panel in the front and sheers in the back.

• Operates as a hand drawn system.
• Supports pleated drapery styles with one-way or center draw capability.

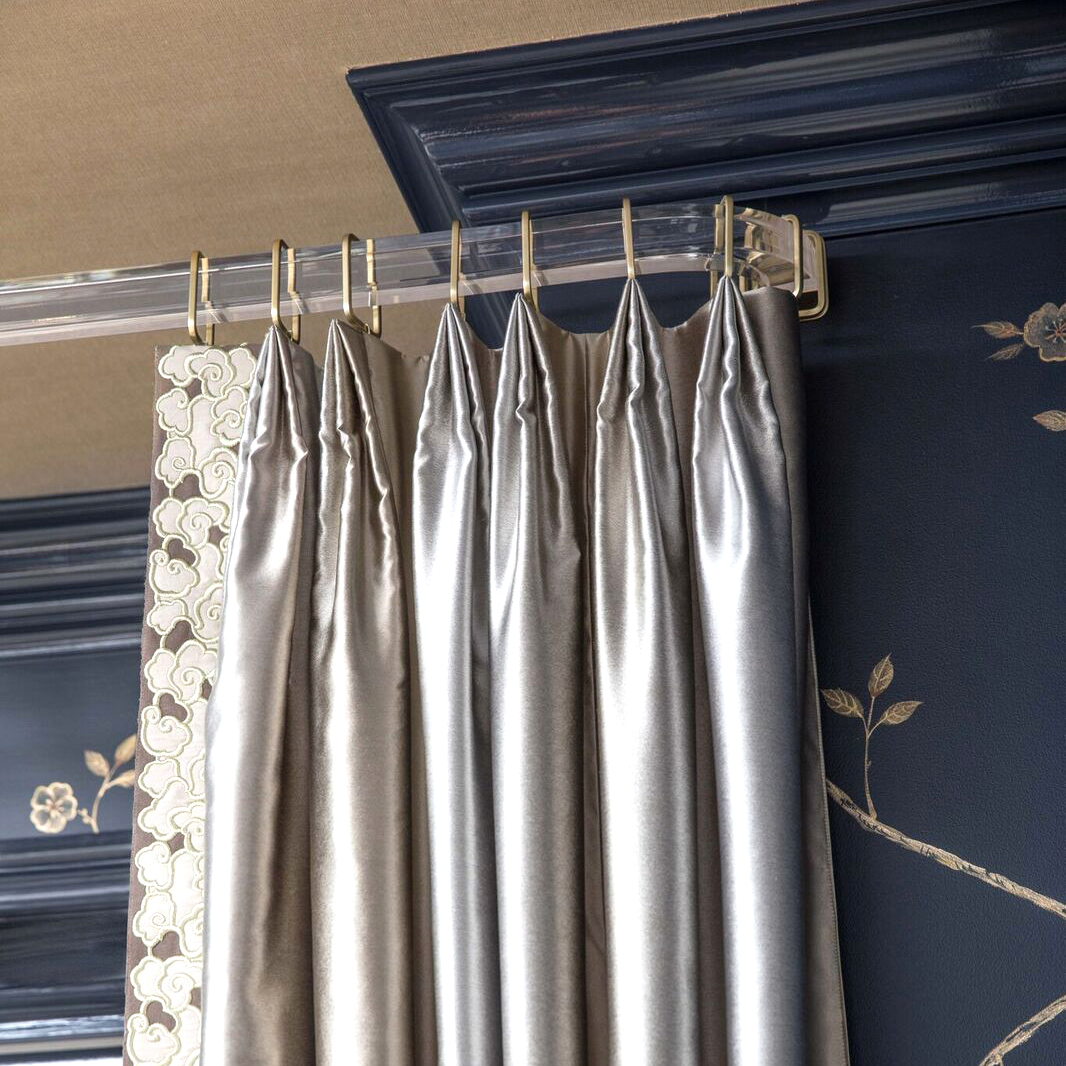

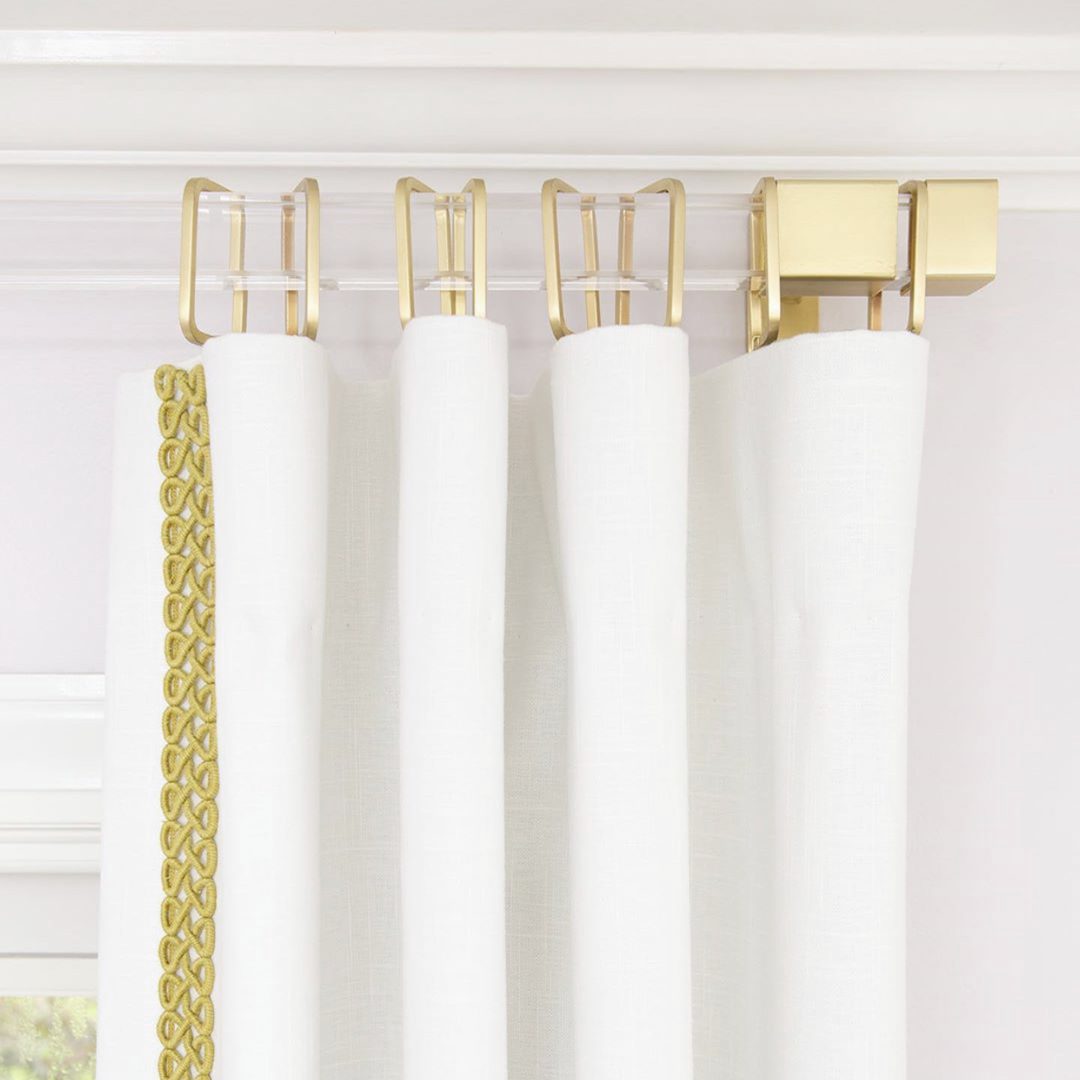

• Heavy-gauge acrylic pole supports all fabric types.
• 1 1/2” square pole can be custom cut to order. Custom items are non-returnable.

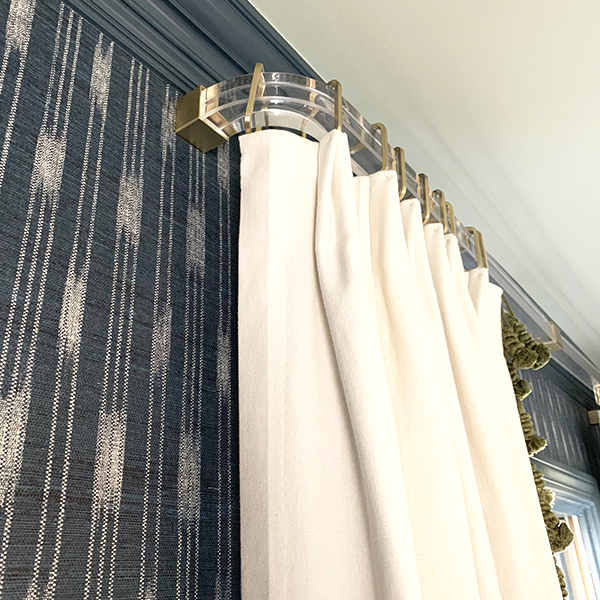

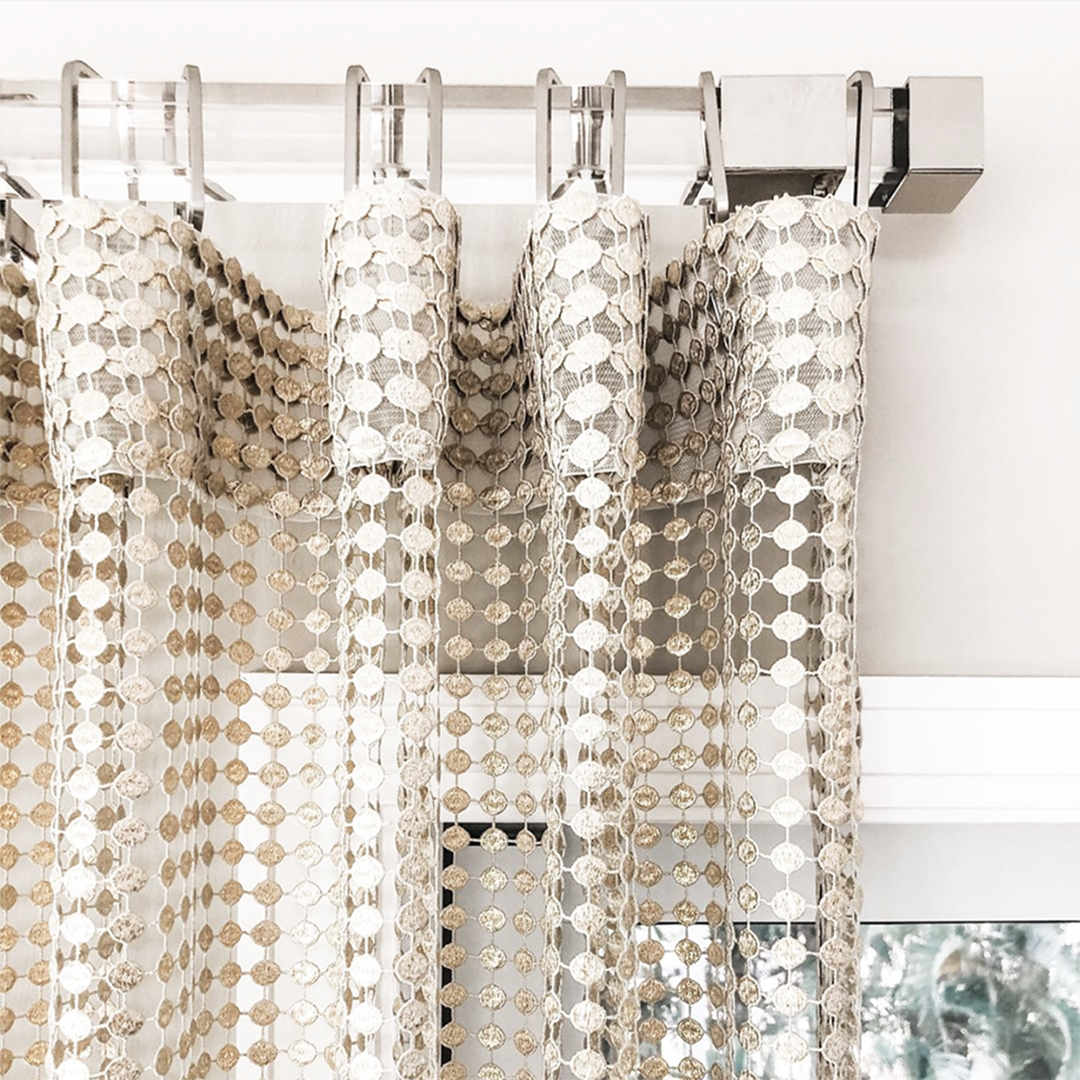

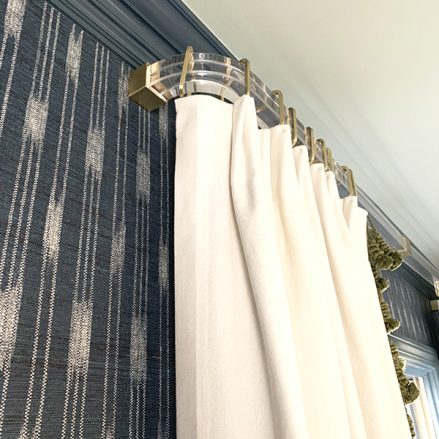

• Square rings glide smoothly across the pole without causing scratches.

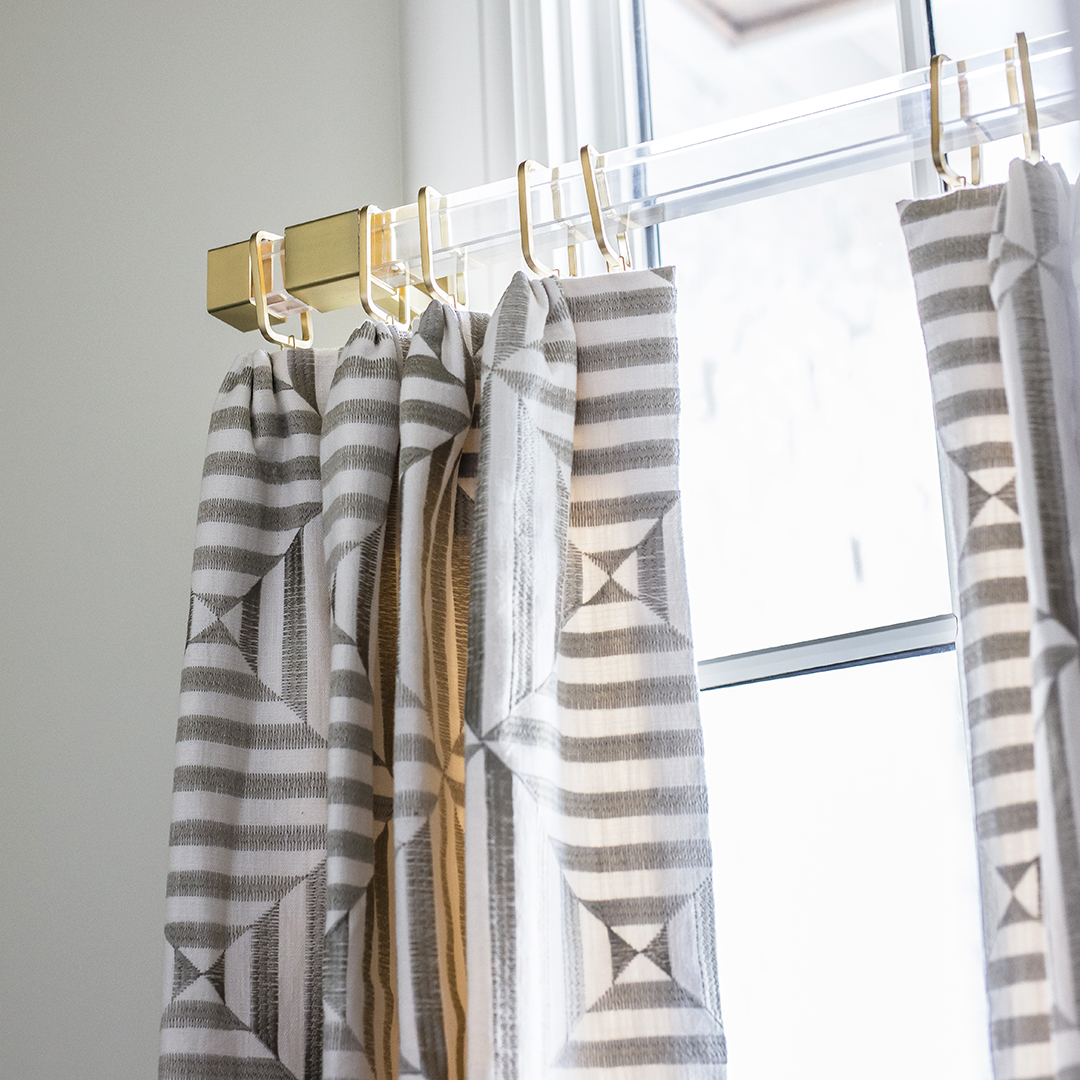

• C-rings bypass brackets creating a continuous draw.
• A ceiling bracket is available for ceiling mount applications.
• Two single brackets with different projections can be combined to create a double-bracket system suited for multi-panel window treatments.

• Operates as a baton drawn system.
• Supports pleated drapery styles with one-way or center draw capability.

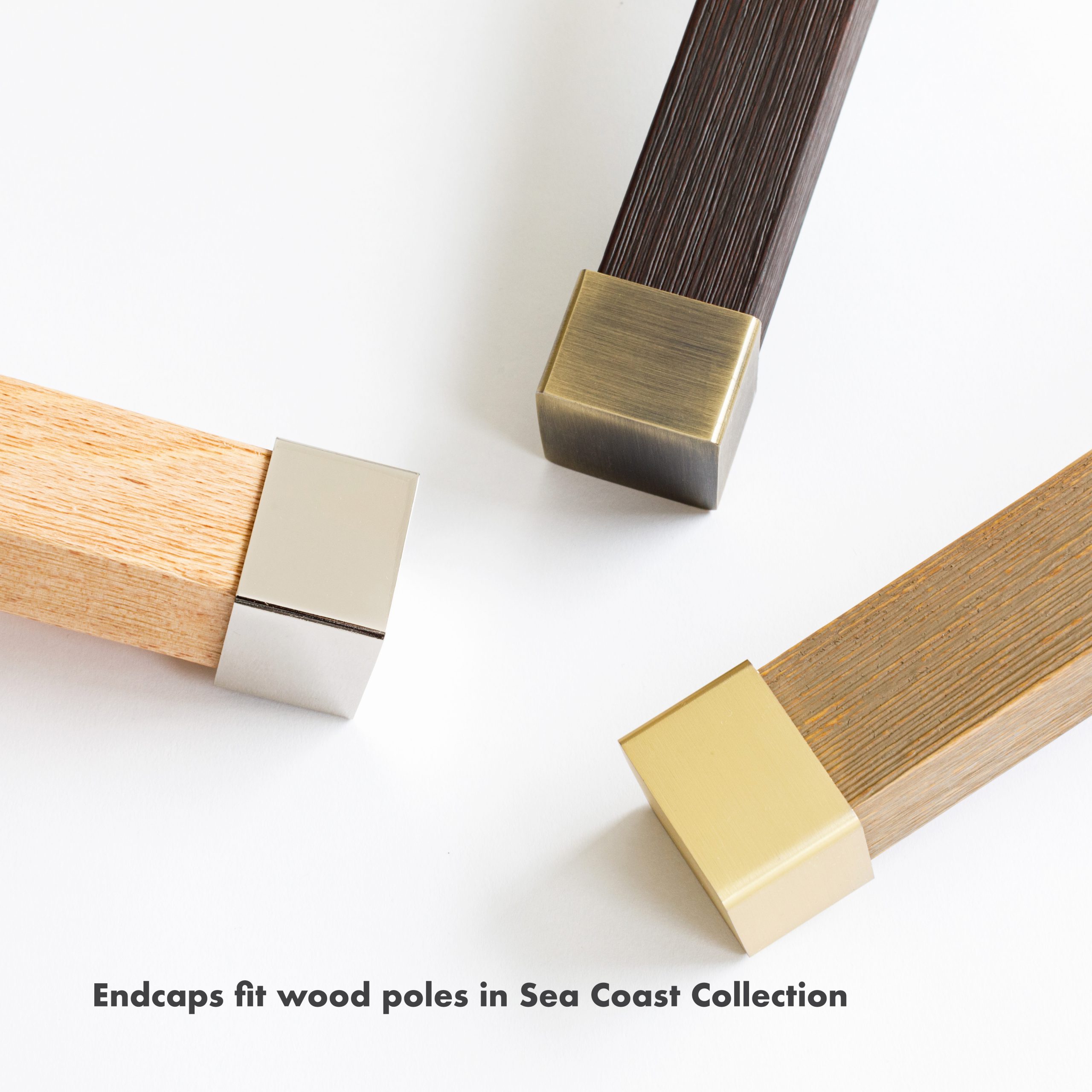

• The durable wood pole is intended for all fabric types.
• 1 1/2” square pole. Poles can be custom cut to order. Custom items are non-returnable.
• Square rings glide smoothly across the square pole.
• For a ring-free look, choose traverse glides which operate within the rod channel.
• A ceiling bracket is available for ceiling mount applications.

• If using drapery rings, four rings are recommended per foot of pole.
• If using traverse glides, calculate # of drapery glides needed by dividing rod length by 4. Example: (96″ rod ÷ 4 = 24 glides)
• To splice two poles, utilize a bracket to provide necessary center support. Bracket conceals undesirable seam.
• One bracket is recommended every 4 feet.
• Use inside mount bracket to recede poles directly to the wall for a clean look.

• Four drapery rings are recommended per foot of pole.
• To splice two poles, utilize a bracket to provide necessary center support. Bracket conceals undesirable seam.
• One bracket is recommended every 2 1/2 feet to prevent pole from bowing.
• Use inside mount bracket to recede poles directly to the wall for a refined look.

• If using drapery rings, four rings are recommended per foot of pole.
• If using traverse glides, calculate # of drapery glides needed by dividing rod length by 4. Example: (96″ rod ÷ 4 = 24 glides)
• To splice two poles, utilize a bracket to provide necessary center support. Bracket conceals undesirable seam.
• One bracket is recommended every 4 feet.
• Use inside mount bracket to recede poles directly to the wall for a clean look.

• Our drapery hardware and ripplefold components work in conjunction to create tailored draperies with perfectly shaped and evenly spaced folds.
• Window treatments using ripplefold components have reduced drapery stacks which create increased window exposure.
• Ripplefold draperies travel effortlessly along our channeled traverse poles or CS tracks by using snap carriers.
• Snap carriers dictate how full or narrow the folds are and the spacing between the folds.
• Ripplefold fullness options include 60%, 80%, 100% and 120%.
• Snap carriers are double sided making them ideal for sheers or creating room dividers.
• Apply snap tape to the top backside of your drapery panel. Snaps are 4 ¼” on center.
• To assist you in ordering the proper quantity of ripplefold components, please refer to our Hand Drawn Ripplefold Chart.

Not available in this collection.

• Our drapery hardware and ripplefold components work in conjunction to create tailored draperies with perfectly shaped and evenly spaced folds.
• Window treatments using ripplefold components have reduced drapery stacks which create increased window exposure.
• Ripplefold draperies travel effortlessly along our channeled traverse poles by using snap carriers.
• Snap carriers dictate how full or narrow the folds are and the spacing between the folds.
• Ripplefold fullness options include 60%, 80%, 100% and 120%.
• To assist you in ordering the proper quantity of ripplefold components, please refer to our Hand Drawn Ripplefold Chart.
• Snap carriers are double sided making them ideal for sheers or creating room dividers.
• Apply snap tape to the top backside of your drapery panel. Snaps are 4 1/4″ on center.
• To order the proper quantity of ripplefold components, consult your workroom.

Not available in this collection.

Not available in this collection.

Not available in this collection.

Not available in this collection.

Not available in this collection.

Not available in this collection.

Not available in this collection.

Brimar bend technician’s have mastered the time and temperature component to form perfect acrylic French Return bends without bubbling or yellowing to create a one of a kind custom rod for your client. Custom bending acrylic is extremely labor intensive and requires 100% attention to detail throughout the entire process. We are happy to prepare a quote upon receiving your specifications.

• To start, measure each individual window. Do not assume all windows are of equal size.
• Measure with extreme accuracy. Round all measurements to the nearest 1/8 inch.
• When planning your window design be mindful to corners, crown molding, doors, cabinetry and built-in furniture which may interfere with your installation.

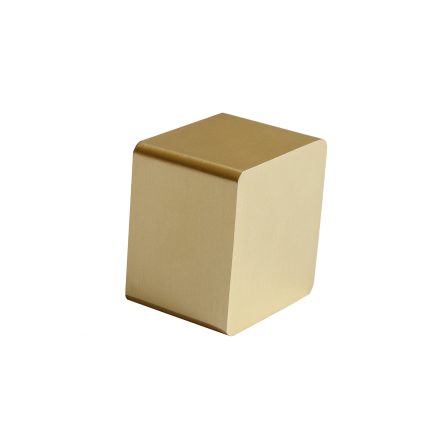

• Consider your finished length when providing dimensions. Factor in the added length of your finials or endcaps when establishing your pole length.
• Poles are custom cut to your exact specifications. Due to the custom nature of this service, custom bent poles are non-returnable.
• Please use our Pole Bending Worksheet to illustrate your window design. We will prepare a quote once we receive your completed worksheet or template.
• Hand Drawn 90⁰ Bend Radius Diagram
• Please indicate if your drawing is based on wall-to-wall measurements or rod measurements. This will influence how we interpret your sketch.
• Brimar will assume that your drawing is based on a top-down view. If otherwise, please specify.
• When placing an order, a template in actual size is required for custom bend orders. How To Create A Template. It is important that you work with your installer to provide accurate dimensions and bend angles as they will determine your finished product. Miscalculations may cause incorrect bending. Custom bent poles are non-returnable.
• Expect longer lead times for us to prepare your order.

Not available in this collection.

• All orders are shipped F.O.B. Lake Forest, Illinois
• Poles ship via UPS or FedEx.
• Brimar ships poles and their components separately in order to prevent damage, unless specified otherwise. Poles and/or components may arrive on separate days based on the delivery company and is not within our control.
• All orders will be shipped via the most efficient, economical method based on package size, unless specified otherwise.
• Custom cut poles are non-returnable.

• All orders are shipped F.O.B. Lake Forest, Illinois
• Poles ship via UPS or FedEx.
• Brimar ships poles and their components separately in order to prevent damage, unless specified otherwise. Poles and/or components may arrive on separate days based on the delivery company and is not within our control.
• All orders will be shipped via the most efficient, economical method based on package size, unless specified otherwise.
• Custom cut poles and custom bent poles are non-returnable.

• All orders are shipped F.O.B. Lake Forest, Illinois
• Poles ship via UPS or FedEx.
• Brimar ships poles and their components separately in order to prevent damage, unless specified otherwise. Poles and/or components may arrive on separate days based on the delivery company and is not within our control.
• All orders will be shipped via the most efficient, economical method based on package size, unless specified otherwise.
• Custom cut poles are non-returnable.
