• Operates as a hand drawn system.
• Supports pleated or ripplefold drapery styles with one-way or center draw capability.

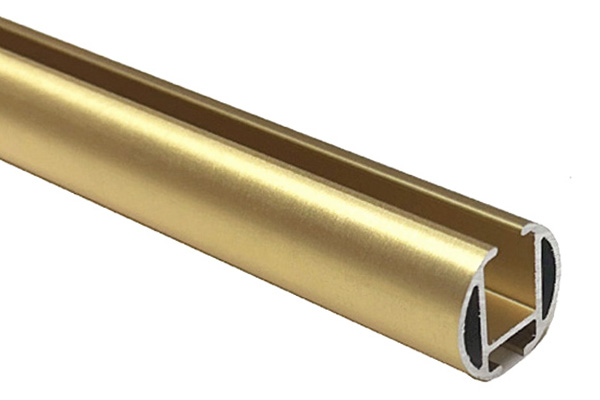

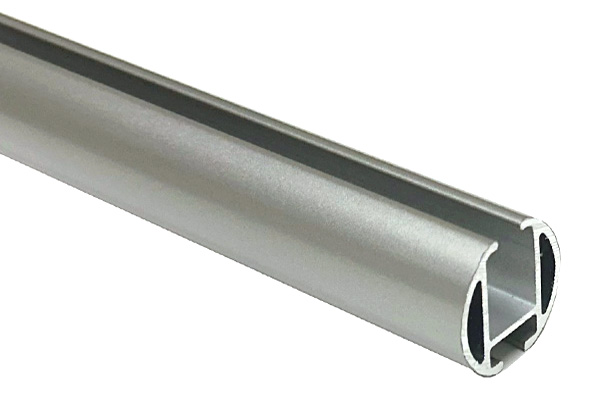

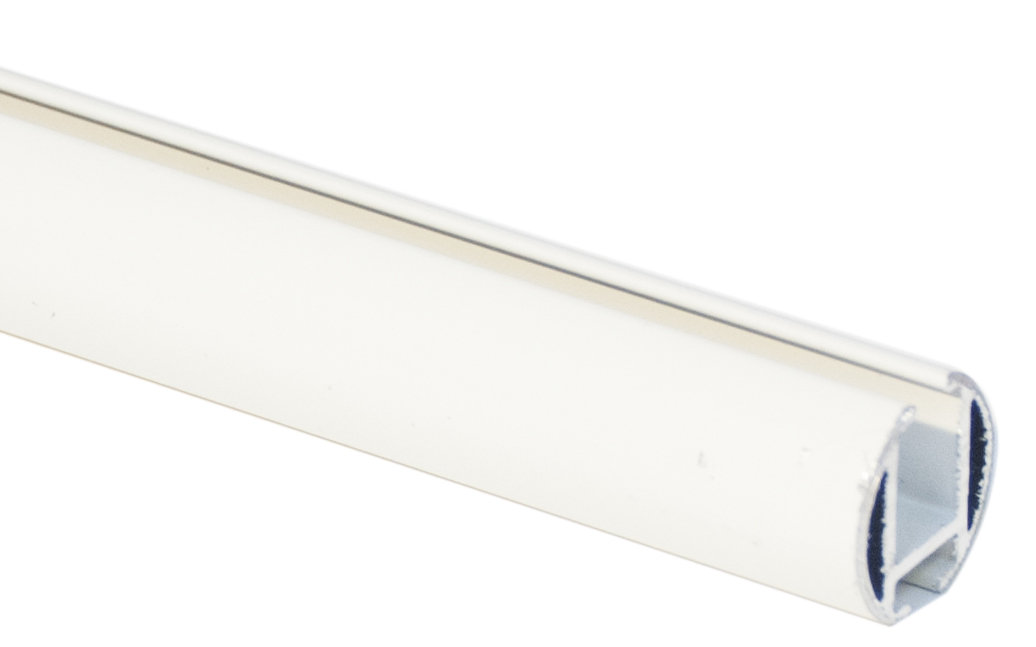

• The aluminum poles are intended for all fabric types.
• 1 ¼” pole diameter; ¾” square track. Poles can be custom cut to order. Custom items are non-returnable.

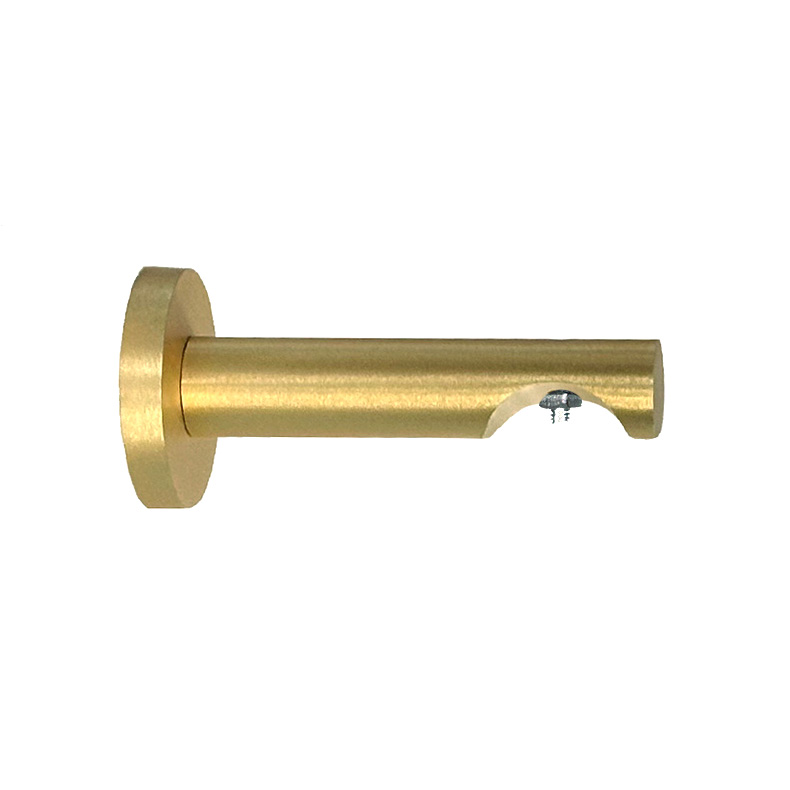

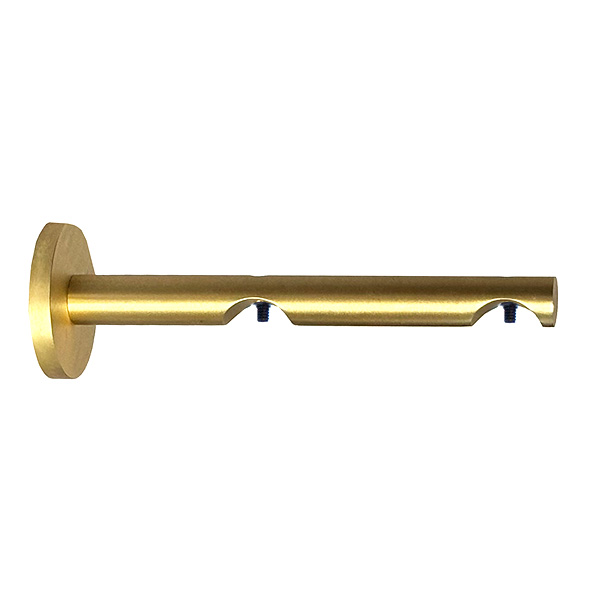

• Quality ball-bearing glides and master carriers roll with ease and bypass brackets for a long continuous draw.

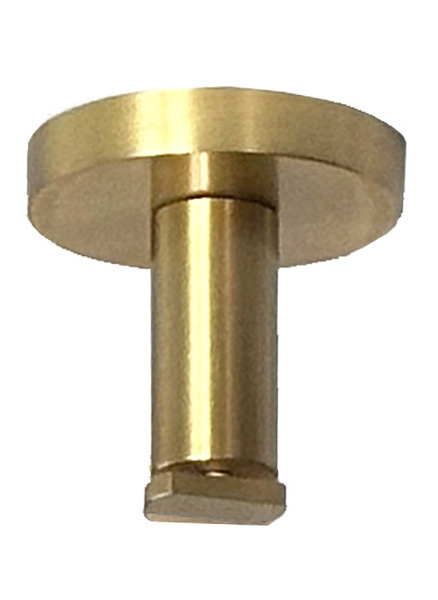

• Ceiling brackets are available for ceiling mount applications.

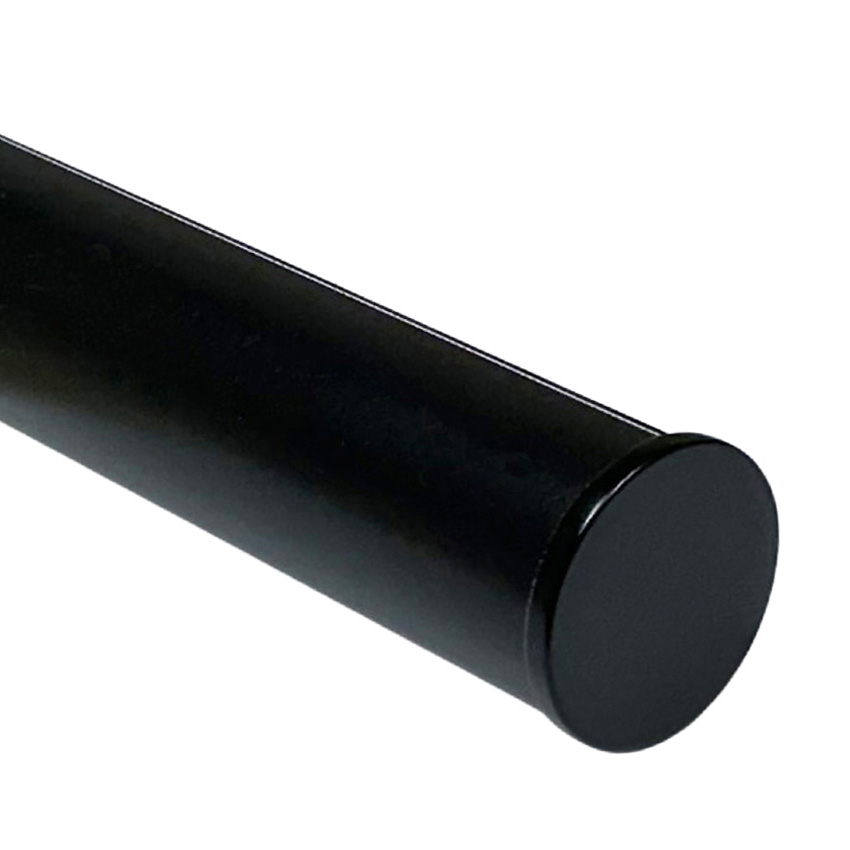

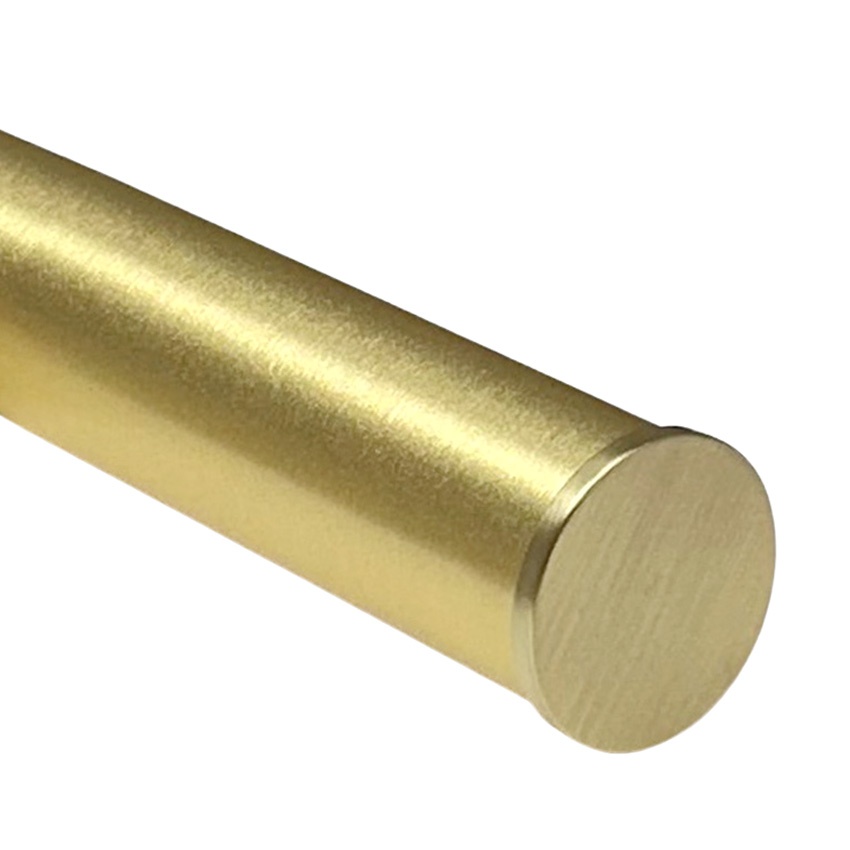

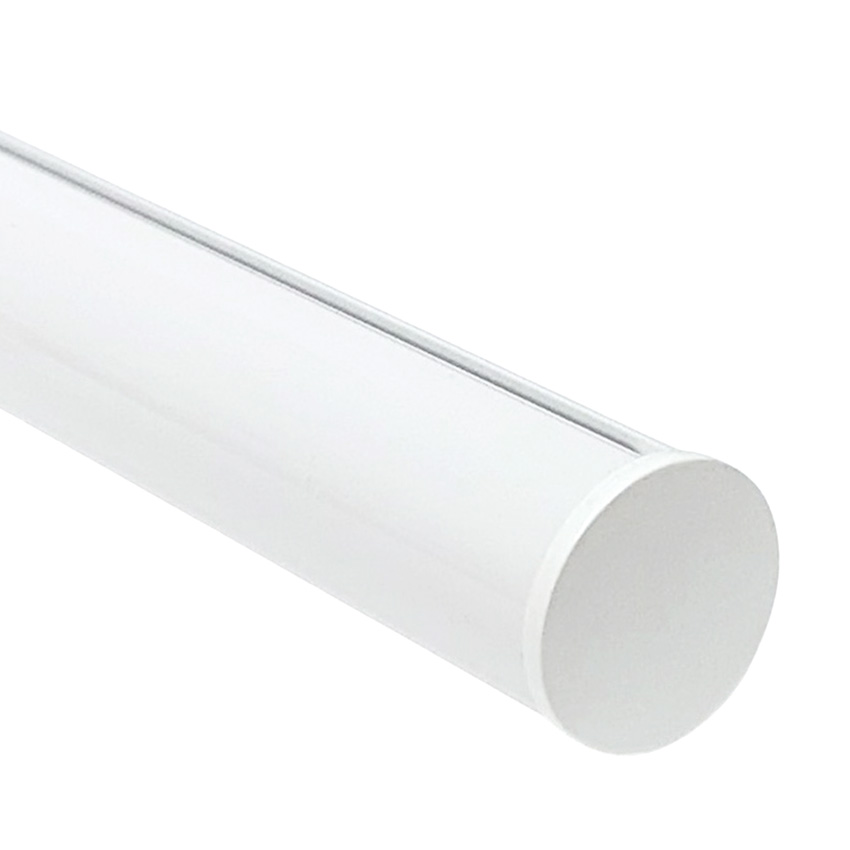

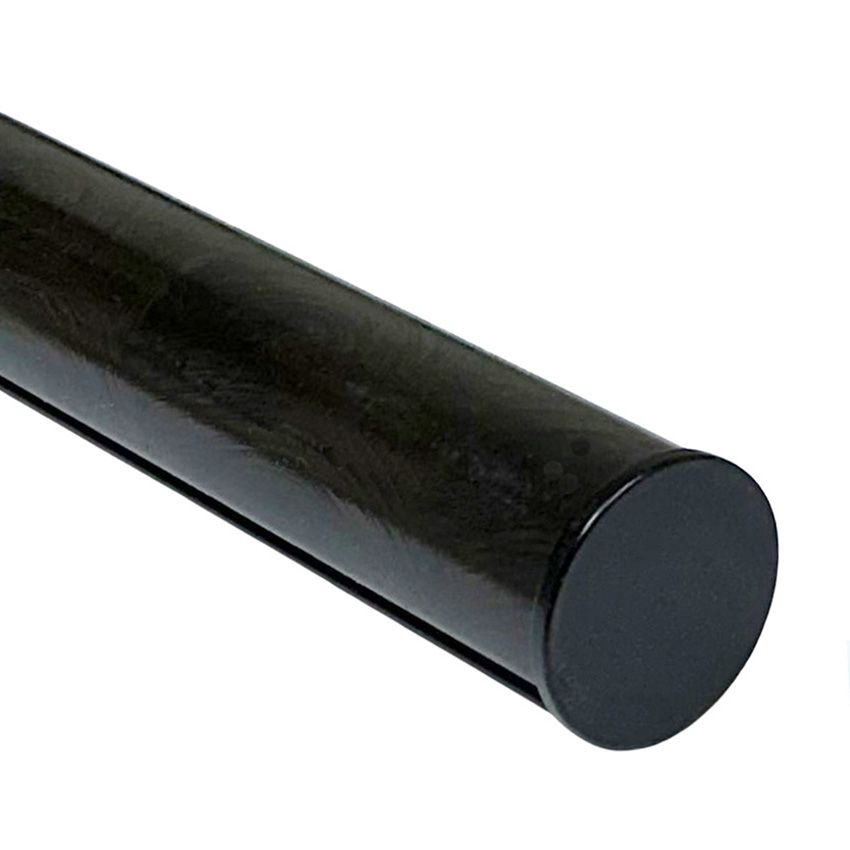

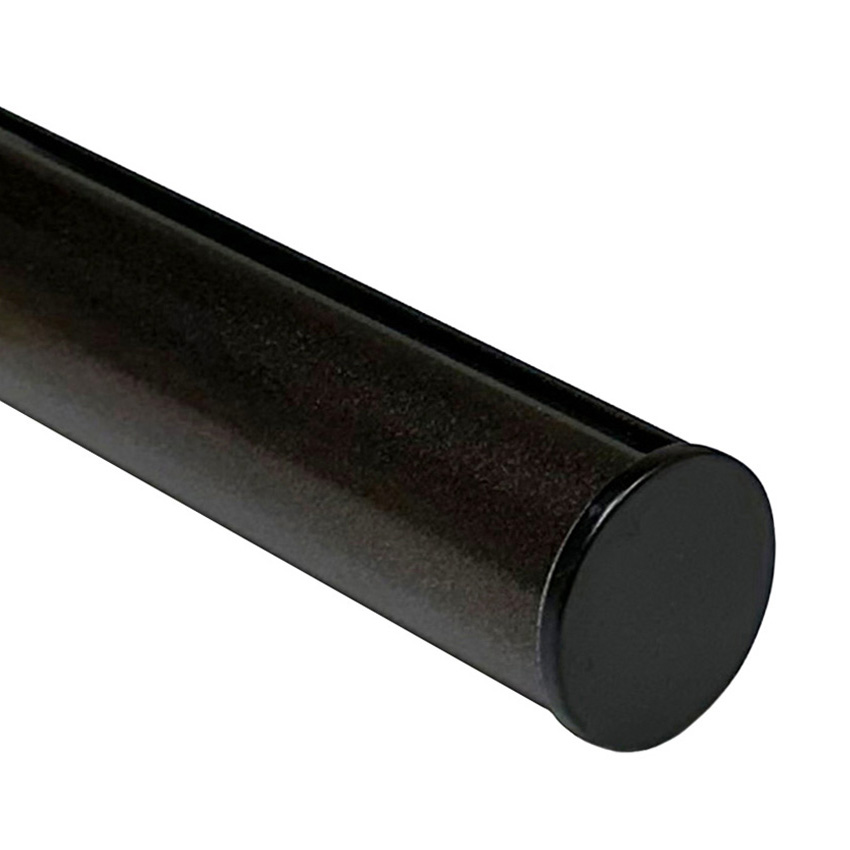

• Choice of 6 pole finishes.

• To calculate # of drapery glides needed, divide rod length by 4. Example: (96″ rod ÷ 4 = 24 glides)
• Order an even number of glides to ensure the drape returns to the wall.

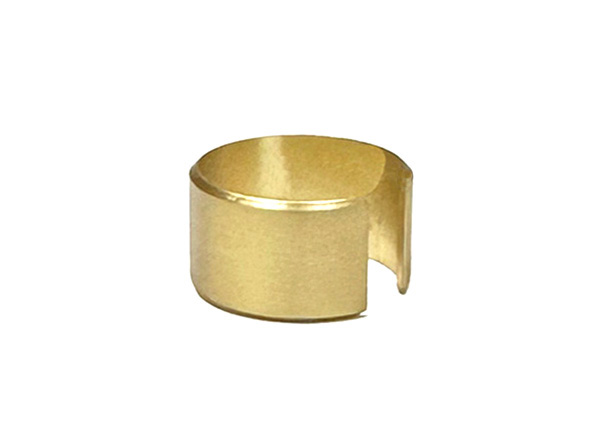

• To splice two poles, utilize a splice connector and splice cover to provide necessary support and to conceal undesirable seam. Brackets should be placed on both sides of the splice for ample support.
• Four drapery glides recommended per foot of pole.
• For center draw treatments use an overlap and underlap master carrier to prevent a gap between the panels and light leaks.

• Our drapery hardware and ripplefold components work in conjunction to create tailored draperies with perfectly shaped and evenly spaced folds.
• Window treatments using ripplefold components have reduced drapery stacks which create increased window exposure.
• Ripplefold draperies travel effortlessly along our channeled traverse poles by using snap carriers.
• Snap carriers dictate how full or narrow the folds are and the spacing between the folds.
• Ripplefold fullness options include 60%, 80%, 100% and 120%.
• Snap carriers are double sided making them ideal for sheers or creating room dividers.
• Apply snap tape to the top backside of your drapery panel. Snaps are 4 ¼” on center.
• To assist you in ordering the proper quantity of ripplefold components, please refer to our Hand Drawn Ripplefold Chart.

We highly recommend that you consult your workroom for accurate quantities needed to suffice your particular project.

Not available in this collection.

Bend Configurations Available:

• Bow
• Bay

Allow us to custom bend your drapery poles. We are happy to prepare a quote upon receiving your specifications.

• To start, measure each individual window. Do not assume all windows are of equal size.
• Measure with extreme accuracy. Round all measurements to the nearest 1/8 inch.
• When planning your window design be mindful to corners, crown molding, doors, cabinetry and built-in furniture which may interfere with your installation.

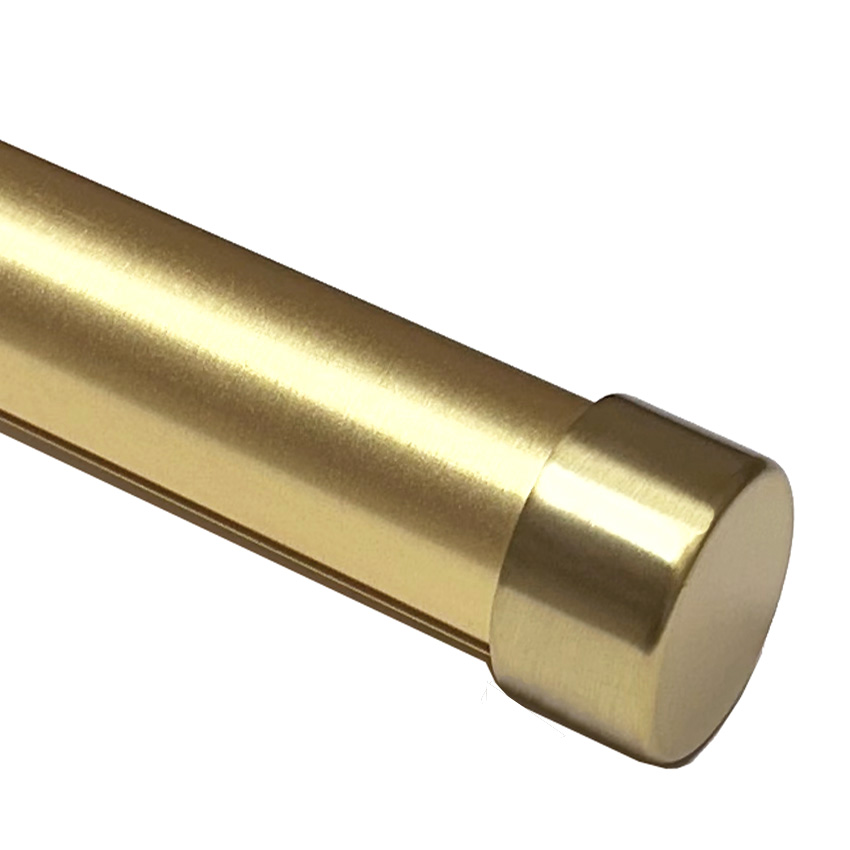

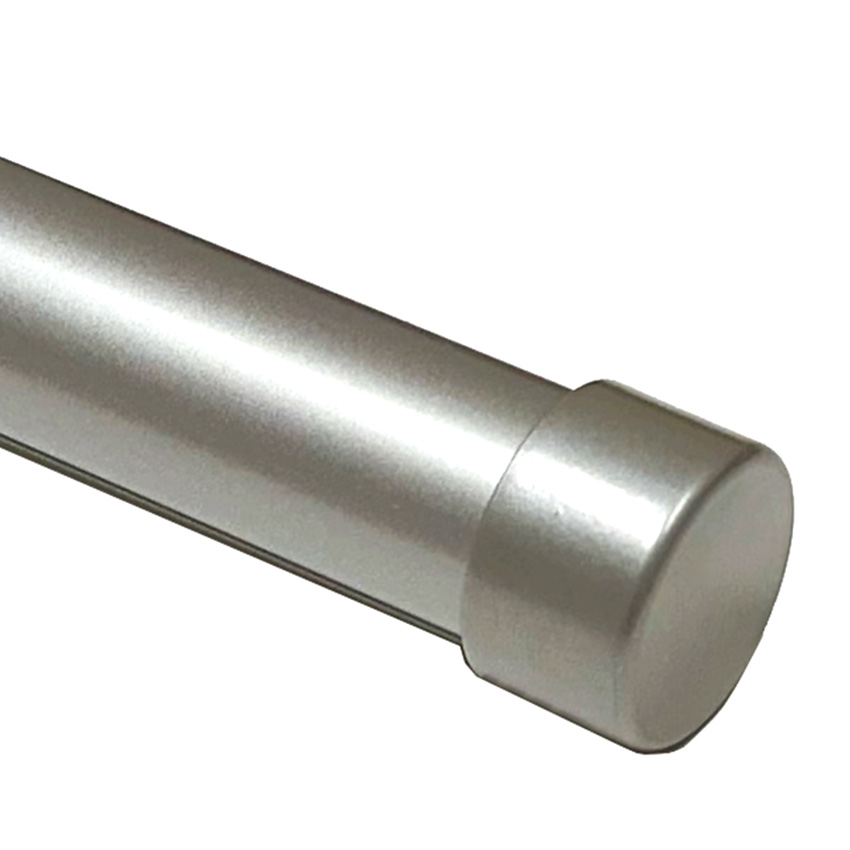

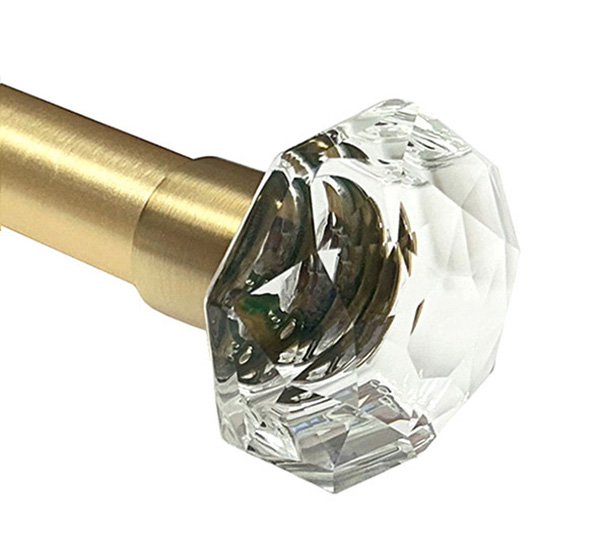

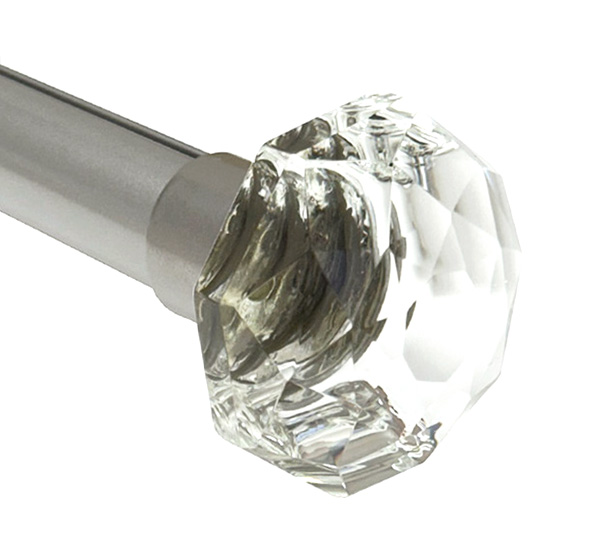

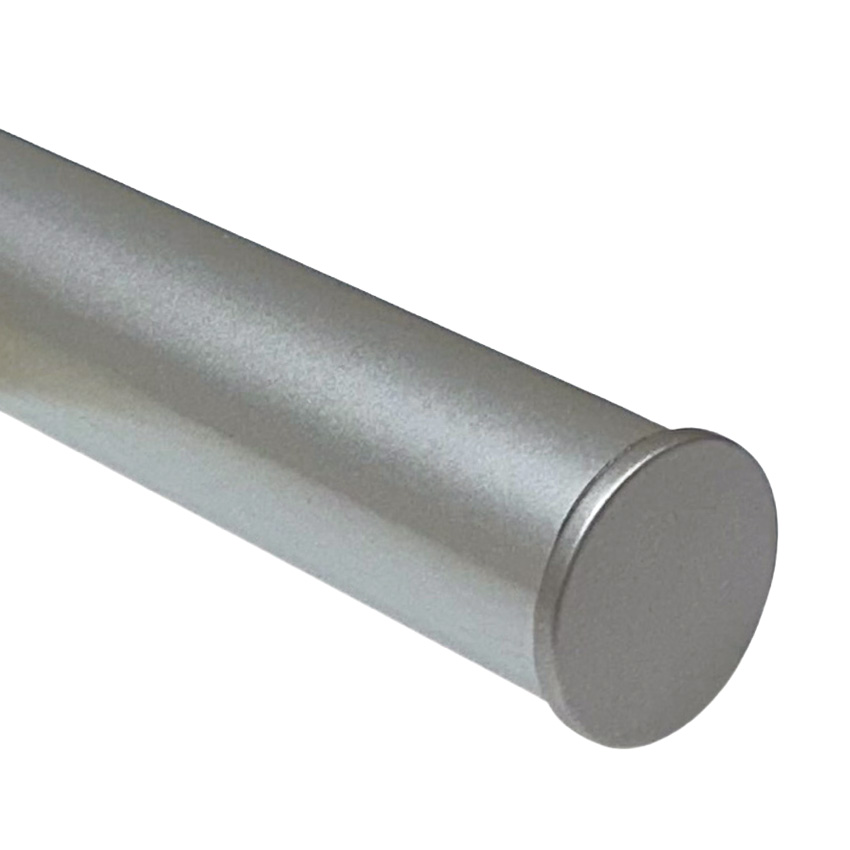

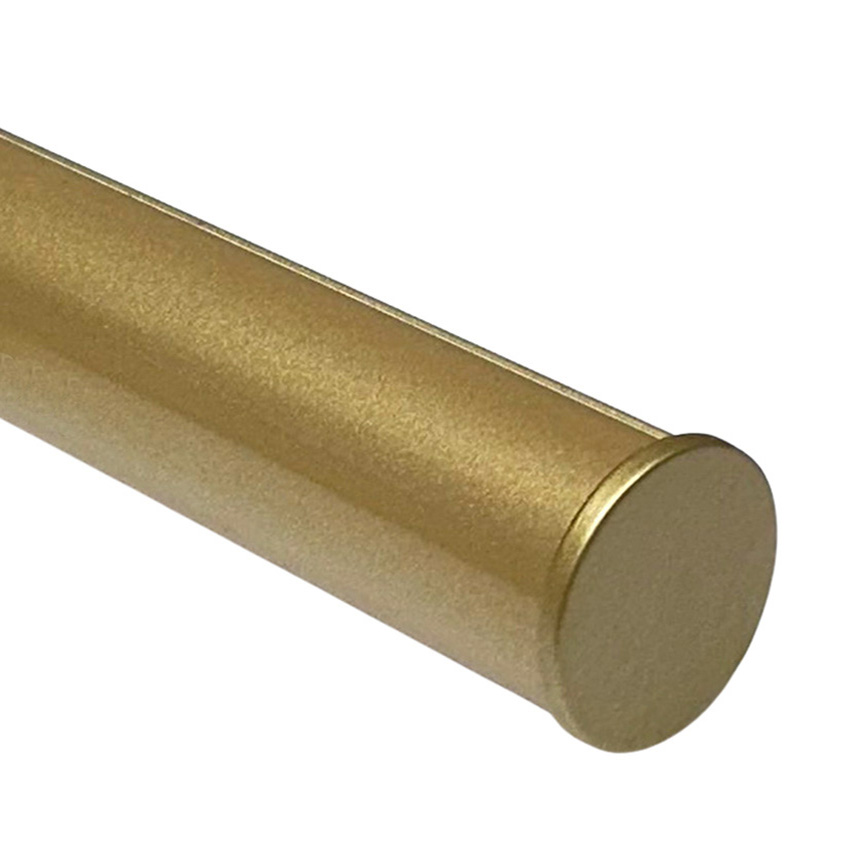

• Consider your finished length when providing dimensions. Factor in the added length of your finials or endcaps when establishing your pole. Poles are custom cut to your exact specifications. Due to the custom nature of this service, custom bent poles are non-returnable.
• Pole angles should be equivalent to wall angles. Example: wall angle=45° rod angle=45°
• For bay windows we do not recommend placing a bracket where two walls meet, rather position brackets to the left or right of a corner.
• Please use our Pole Bending Worksheet to illustrate your window design. We will prepare a quote once we receive your completed worksheet or template.
• Please indicate if your drawing is based on wall-to-wall measurements or rod measurements. This will influence how we interpret your sketch.
• Brimar will assume that your drawing is based on a top-down view. If otherwise, please specify.
• A template in actual size is required for custom bend orders. It is important that you work with your installer to provide accurate dimensions and bend angles as they will determine your finished product. Miscalculations may cause incorrect bending. Custom bent poles are non-returnable.
• Expect longer lead times for us to prepare your order.
• An additional crating fee applies.

• All orders are shipped F.O.B. Lake Forest, Illinois
• Pole lengths under 96” ship via UPS or FedEx.
• Pole lengths over 96” ship via common carrier truck.
• Brimar ships poles and their components separately in order to prevent damage, unless specified otherwise. Poles and/or components may arrive on separate days based on the delivery company and is not within our control.
• All orders will be shipped via the most efficient, economical method based on package size, unless specified otherwise.
• Custom cut poles, brackets or custom bends are non-returnable.
